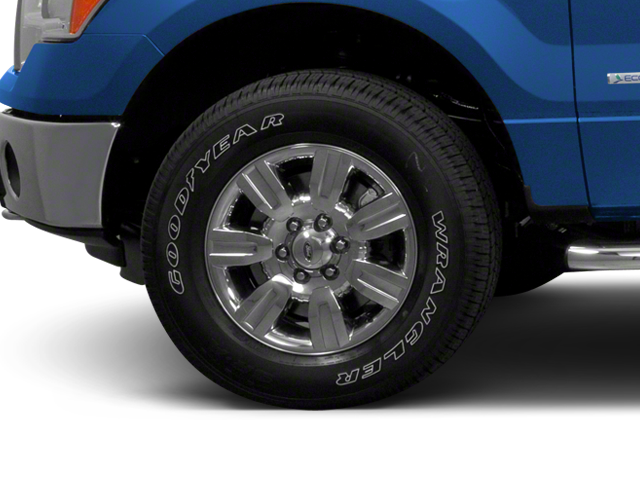

• P265/70R17 all-terrain OWL tires
• 17" machined aluminum wheels w/painted accents
• Full-size spare tire w/lock, underframe winch-type carrier, safety catch
• Chrome front bumper w/black lower valance & body-color upper fascia
• Chrome rear step bumper
• Black front/rear stone cuffs
• Outer scuff pad
• Chrome grille surround w/chrome "bar style" insert
• Autolamp -inc: automatic on/off headlamps
• Cargo lamp integrated w/high mount stop light
• Black pwr side mirrors
• Fixed rear window
• Rear privacy tint glass
• Variable speed intermittent wipers
• Black door & tailgate handles
• (4) full-size doors
• Removable tailgate w/key lock & lift assist

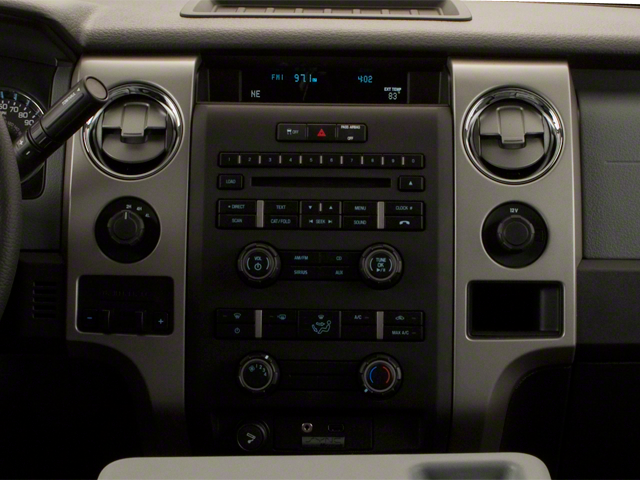

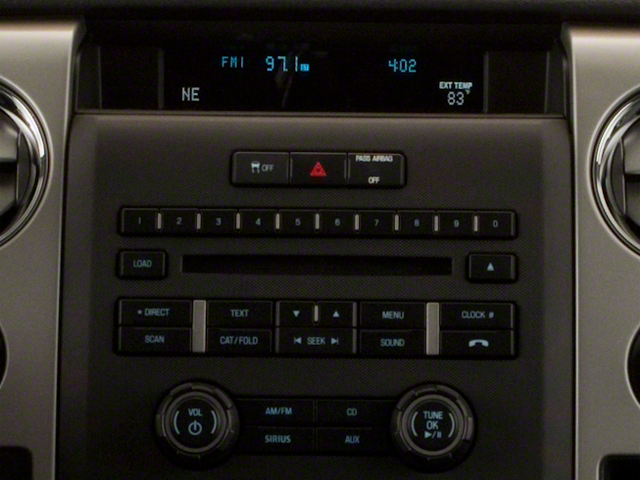

• AM/FM stereo w/CD player -inc: clock, speed compensated volume control, aux audio input jack

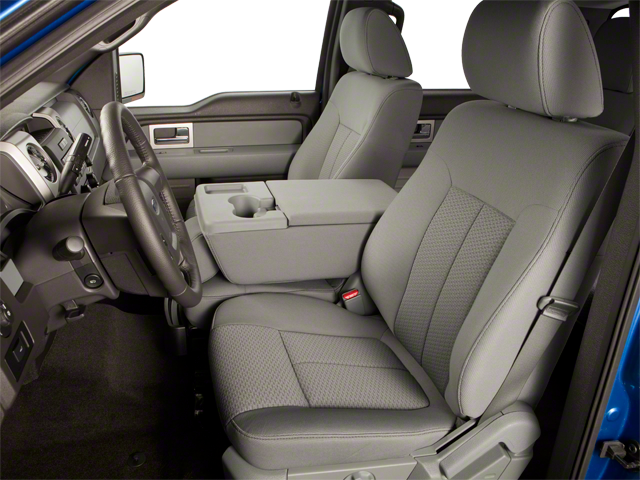

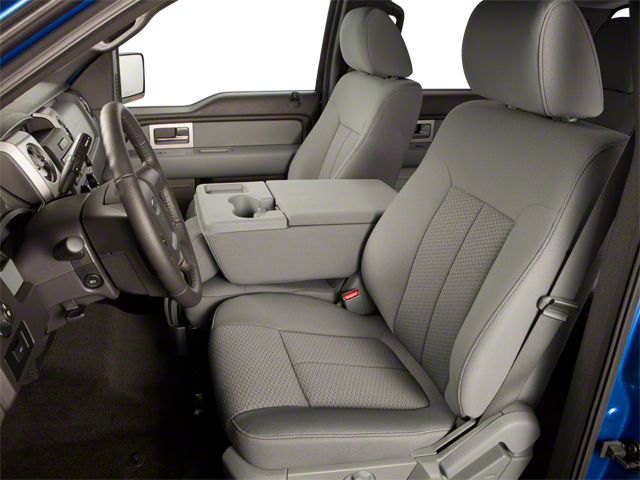

• Premium cloth 40/20/40 split bench front seat w/manual driver lumbar

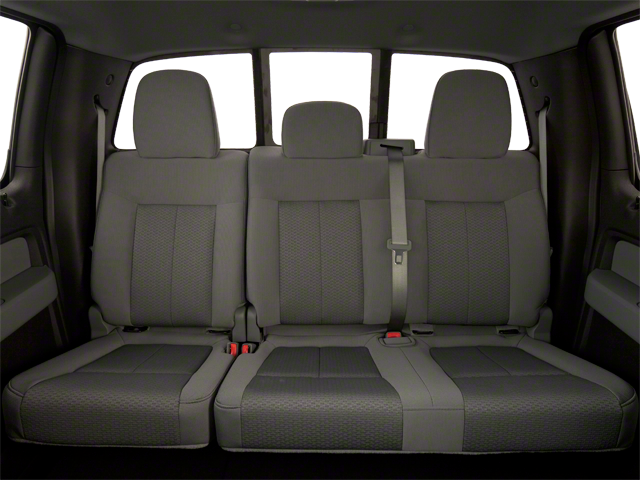

• 60/40 flip-up rear split bench seat
• Color-coordinated carpet -inc: carpeted front & rear floor mats
• Driver & front passenger door scuff plates

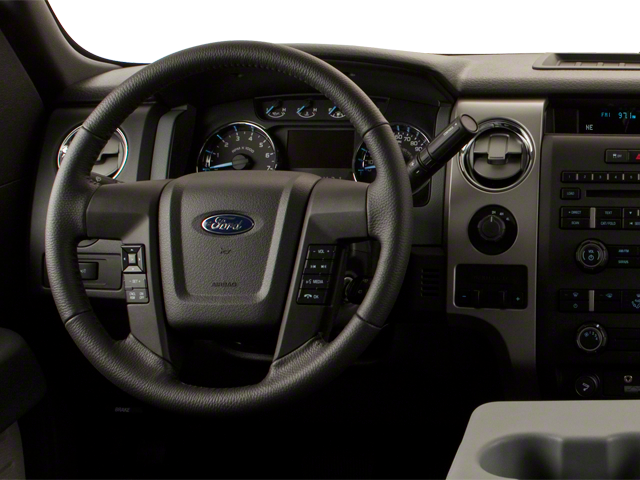

• Color-coordinated urethane steering wheel
• Tilt steering column
• Display center -inc: warning messages & text functions
• Customer info display
• Outside temp gauge

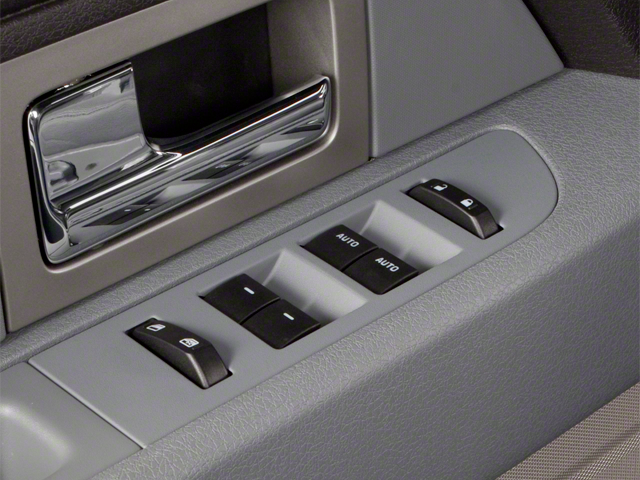

• Pwr windows w/driver side 1-touch down
• Delayed accessory pwr
• Pwr door locks w/autolock feature
• Remote keyless entry w/(2) fobs, illuminated entry & panic button
• Cruise control
• SecuriLock anti-theft ignition (PATS)
• Manual air conditioning
• Chrome ring w/obsidian vanes air conditioning registers
• Deployable cupholder under middle seat
• Rear door cupholders
• Instrument panel mounted cigar lighter
• Front pwr point
• Rear pwr point
• Overhead console w/(2) storage bins
• Driver & front passenger covered visor vanity mirrors
• Front passenger side A-pillar grab handle
• 2nd row B-pillar grab handles
• Front/rear map lights
• Fade-to-off interior lighting

• Anti-lock braking system (ABS)
• AdvancTrac w/roll stability control (RSC)
• Dual stage driver & front passenger front airbags w/passenger off switch
• Dual stage driver & front passenger seat-mounted side airbags
• Safety canopy front/rear outboard side curtain airbags
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• SOS post crash alert system
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Center front 2-point safety belt
• 3-point safety belts at all rear seat positions
• Auto lock safety belt feature for child seats
• Rear door child safety locks
• Tire pressure monitoring system
• Dual note horn

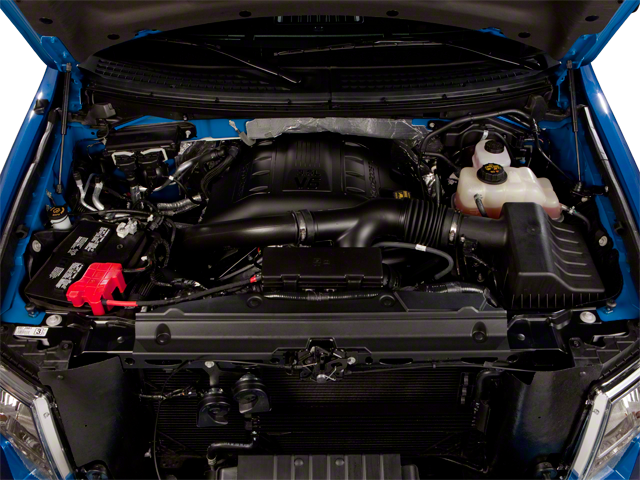

4.6L 3V EFI V8 ENGINE ($0)

• electronic-shift-on-the fly (ESOF) (STD)

• 3.55 Axle Ratio
• AM/FM Stereo/Clock/Single CD
• 4 Speakers

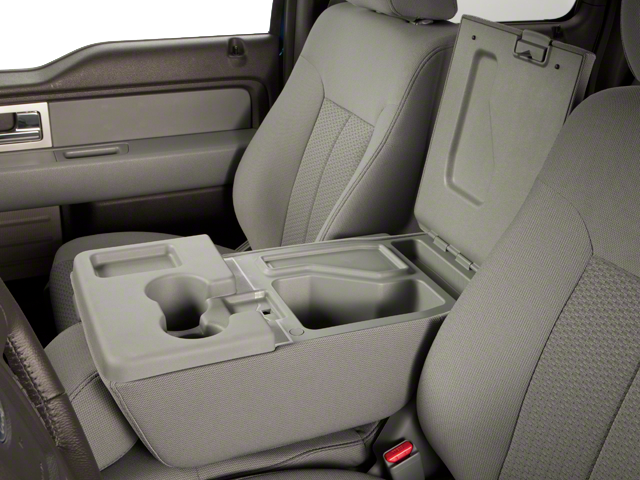

• Front Center Armrest w/Storage
• Front beverage holders
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Split folding rear seat
• Remote keyless entry
• Rear step bumper
• Power windows
• Power steering
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Occupant sensing airbag
• Low tire pressure warning
• Illuminated entry
• Front wheel independent suspension
• Front reading lights
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver door bin
• AM/FM radio
• ABS brakes
• Tachometer
• Electronic Stability Control
• Air Conditioning
• 4-Wheel Disc Brakes

• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3450
• Gross Axle Wt Rating - Rear (lbs): 3850
• Curb Weight - Front (lbs): 3165
• Curb Weight - Rear (lbs): 2357
• Gross Vehicle Weight Rating Cap (lbs): 6950
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 13500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Double Wishbone
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: T7H
• Rear Tire Order Code: T7H
• Spare Tire Order Code: - TBD -
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: - TBD -
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 144.5
• Length, Overall w/o rear bumper (in): 231.7
• Width, Max w/o mirrors (in): 78.9
• Height, Overall (in): 76.4
• Overhang, Front (in): 38.5
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 156.7
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -

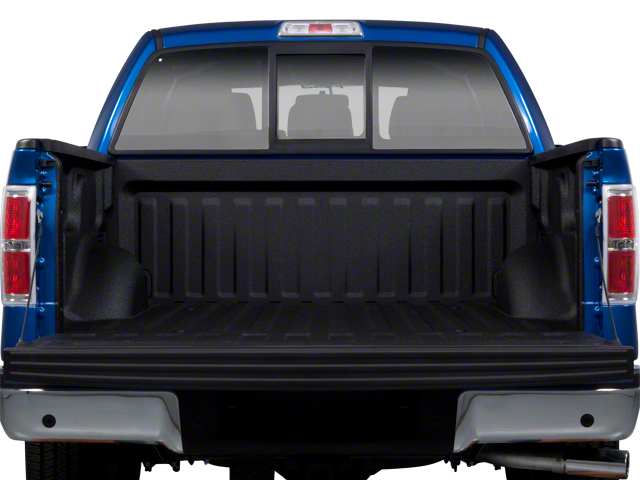

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.4
• Cargo Box Width @ Top, Rear (in): 65.2
• Cargo Box Width @ Floor (in): 65.2
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.3
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): - TBD -
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 65.9
• Front Hip Room (in): 60.5
• Second Head Room (in): 40.3
• Second Leg Room (in): 43.5
• Second Shoulder Room (in): 65.6
• Second Hip Room (in): 64.6
• Summary

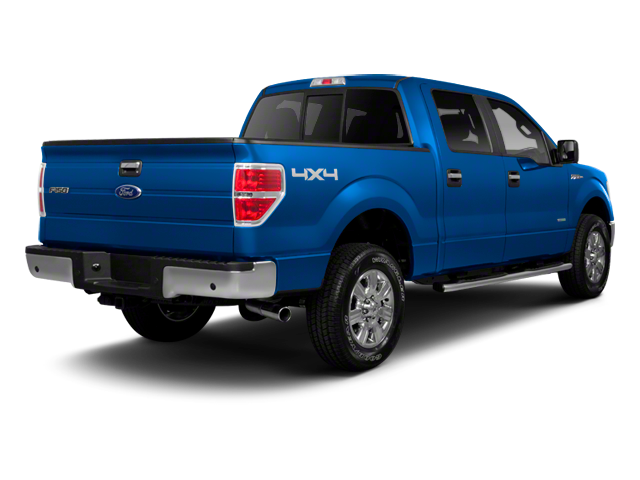

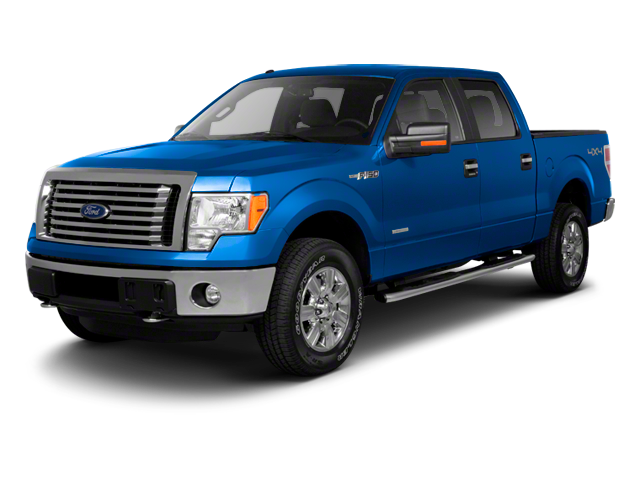

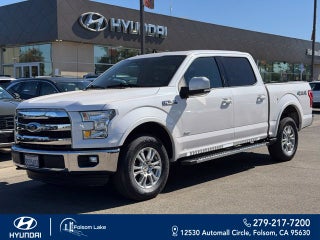

• Vehicle Name: Ford F-150

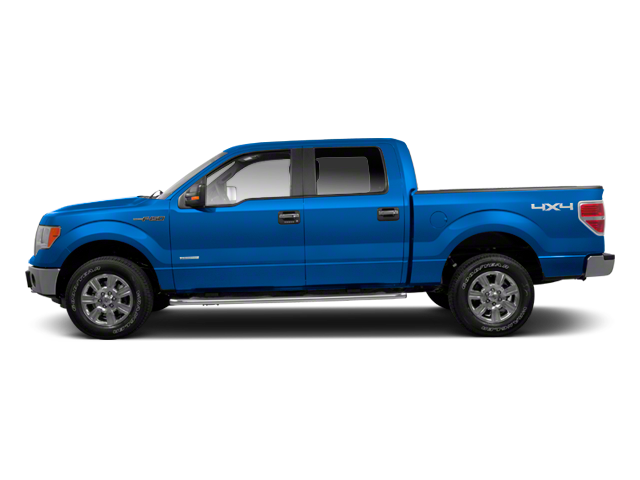

• Body Style: SuperCrew 5.5' Styleside
• Body Code: 145" WB
• Emissions
• EPA Greenhouse Gas Score: 3
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.6
